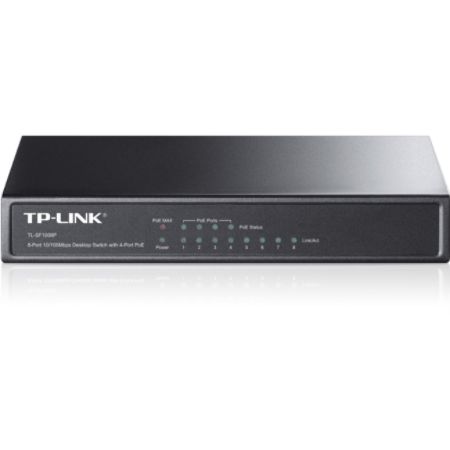

TP-LINK 8-Port 10/100Mbps Desktop Switch with 4-Port PoE Item # 259825

 |
TP-LINK 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
$ 44 .99 / each $44.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.4 of the 8 auto-negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.TL-SF1008P has the priority function which will help protect the system when the system power is overloaded.TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.

    Back To Top

    Product Details

    Item # 259825
    OfficeMax # 23626667
    Manufacturer # 3298599
    Power Over Ethernet (PoE) PoE
    Ethernet Technology Fast Ethernet
    power source AC adapter
    Total Number of Network Ports 8
    height 1.1 in
    Number of PoE (RJ-45) Ports 4
    System Requirements Operating Systems: Windows 87/Vista/XP; Mac OS X; Linux
    Number of Network (RJ-45) Ports 4
    PoE (RJ-45) Port No
    width 6.7 in
    Manageable No
    package contents TL-SF1008P 8-Port 10/100M PoE Switch; Power Adapter; User Guide
    depth 3.9 in
    Product Name TL-SF1008P 8-Port 10/100M PoE Switch
    manufacturer TP-LINK Technologies Co., Ltd
    brand name TP-LINK
    Port/Expansion Slot Details 8 x Fast Ethernet Network
    Input Voltage 48 V DC
    Media Type Supported Twisted Pair
    Layer Supported 2
    form factor Desktop
    model name TL-SF1008P
    Network Technology 10/100Base-TX
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 1 out of 5�by 1 reviewer.
      Rated 1 out of 5�by Cheap and doesnt work I purchased this POE switch for camera work. Based on the specs. it should have had no problem. The output per channel on the switch was 15 watts. My camera max draws 7.5 watts. The camera would not turn on and the switch indicated that the camera had a short, not true. Bought two of these switches, both did not work. Bought a d-link POE switch and the camera came on with no issues. Very dissatisfied and a major loss of my time and money. Now I need to return them both for a full refund. Don't be fooled, it looks like a D-link but it certainly doesn't work like one. May 26, 2013
      • 2016-04-17 T06:21:32.104-05:00
      • bvseo_lps, prod_bvrr, vn_prr_5.6
      • cp-1, bvpage1
      • co_hasreviews, tv_1, tr_1
      • loc_en_US, sid_259825, prod, sort_default
      1-1 of 1
      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • What This Product Does

        The 8-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1008P by TP-LINK provides a seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.

      • How This Product Works

        4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) on the TL-SF1008P support Power over Ethernet (PoE). These PoE ports can automatically detect and supply power with IEEE 802.3af compliant Powered Devices (PDs). In this instance, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, useful for fixing devices such as APs, IP Cameras or IP Phones, etc.

      • Overload Arrangement

        The TL-SF1008P’s priority* function helps protect the system when the system power is overloaded. If all PoE PDs power consumption is greater than or equal to 53W, a priority will be arranged among the PoE ports and the system will cut off the power to the lowest-priority port.

      • Port Priority Function

        *Priority (port-1>port-2>port-3>port-4). For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

      • Easy To Use

        The TL-SF1008P is very easy to use and install as it requires no configuration. With a desktop design, outstanding performance and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great choice for expanding your home or office network.

        *The above information apply ONLY to TL-SF1008P Version 3.0
      See More:

      Product Views

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":546,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/914c6dbf-5dc1-4931-a31c-b84c6bb97f66.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":546,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/914c6dbf-5dc1-4931-a31c-b84c6bb97f66.jpg"},"sources":[{"height":409,"width":960,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/914c6dbf-5dc1-4931-a31c-b84c6bb97f66.jpg.w960.jpg","profile":"W960"},{"height":204,"width":480,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/914c6dbf-5dc1-4931-a31c-b84c6bb97f66.jpg.w480.jpg","profile":"W480"},{"height":102,"width":240,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/914c6dbf-5dc1-4931-a31c-b84c6bb97f66.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":592,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/6920357e-4cbd-47fe-9a05-d65e879512d2.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":592,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/6920357e-4cbd-47fe-9a05-d65e879512d2.jpg"},"sources":[{"height":444,"width":960,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/6920357e-4cbd-47fe-9a05-d65e879512d2.jpg.w960.jpg","profile":"W960"},{"height":222,"width":480,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/6920357e-4cbd-47fe-9a05-d65e879512d2.jpg.w480.jpg","profile":"W480"},{"height":111,"width":240,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/6920357e-4cbd-47fe-9a05-d65e879512d2.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":544,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/448c7f4e-60b7-4ff2-802a-d94770369ff5.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":544,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/448c7f4e-60b7-4ff2-802a-d94770369ff5.jpg"},"sources":[{"height":408,"width":960,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/448c7f4e-60b7-4ff2-802a-d94770369ff5.jpg.w960.jpg","profile":"W960"},{"height":204,"width":480,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/448c7f4e-60b7-4ff2-802a-d94770369ff5.jpg.w480.jpg","profile":"W480"},{"height":102,"width":240,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/448c7f4e-60b7-4ff2-802a-d94770369ff5.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":593,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/794a487a-1888-417c-a3cc-8bfd219d6c05.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":593,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/794a487a-1888-417c-a3cc-8bfd219d6c05.jpg"},"sources":[{"height":444,"width":960,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/794a487a-1888-417c-a3cc-8bfd219d6c05.jpg.w960.jpg","profile":"W960"},{"height":222,"width":480,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/794a487a-1888-417c-a3cc-8bfd219d6c05.jpg.w480.jpg","profile":"W480"},{"height":111,"width":240,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/794a487a-1888-417c-a3cc-8bfd219d6c05.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":853,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/29dd7852-dabd-4991-8e73-5a3da9436eb3.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":853,"width":1280,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/29dd7852-dabd-4991-8e73-5a3da9436eb3.jpg"},"sources":[{"height":639,"width":960,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/29dd7852-dabd-4991-8e73-5a3da9436eb3.jpg.w960.jpg","profile":"W960"},{"height":319,"width":480,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/29dd7852-dabd-4991-8e73-5a3da9436eb3.jpg.w480.jpg","profile":"W480"},{"height":159,"width":240,"src":"/_cp/products/1328229191043/tab-c84f7c3d-ae6f-4095-ad59-69924d16d325/29dd7852-dabd-4991-8e73-5a3da9436eb3.jpg.w240.jpg","profile":"W240"}]}]}

      Features

      • Supports PoE power up to 15.4W for each PoE port
      • Supports PoE power up to 53W for all PoE ports
      • Supports PoE IEEE 802.3af compliant PDs
      • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
      • 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
      • LED indicators for monitoring power, link, activity and speed
      • External power adapter supply

      Warranty

      • Need assistance setting up your TP-LINK device? Our team is here 24/7 to provide toll-free technical support. Whether you bought a TP-LINK product yesterday or years ago, we can help with product setup and configuration at no extra charge. Plus, our 2-year warranty grants you worry-free service for peace of mind

      Package Content

      • Cable/DSL Router
      • Quick installation Guide
      • CD-ROM
      • Power Adapter
      • RJ-15 Ethernet Cable
      • Warranty Card
